Digital Colour and Black & White Photocopiers

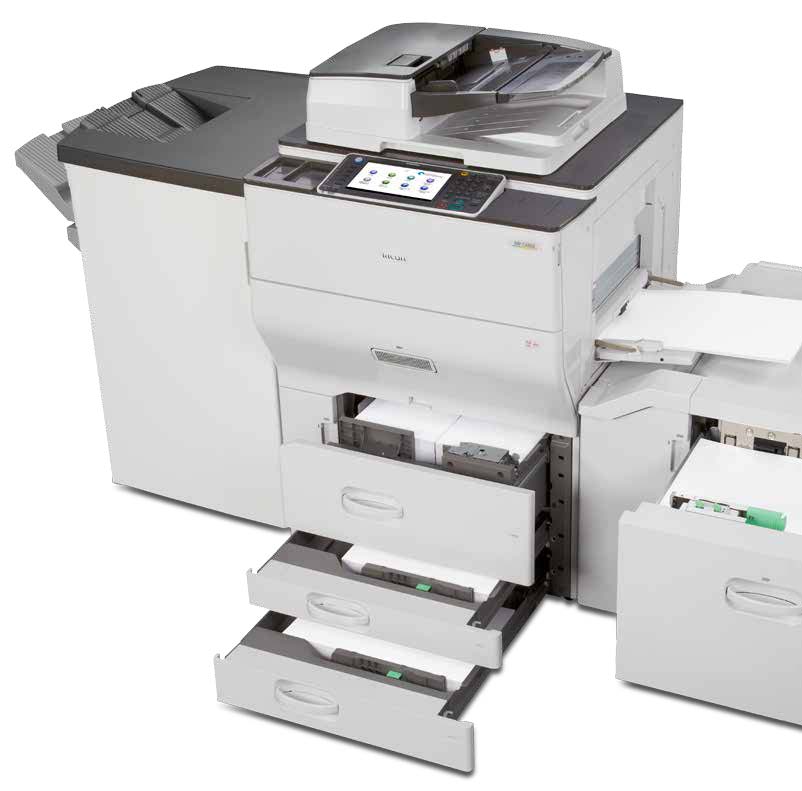

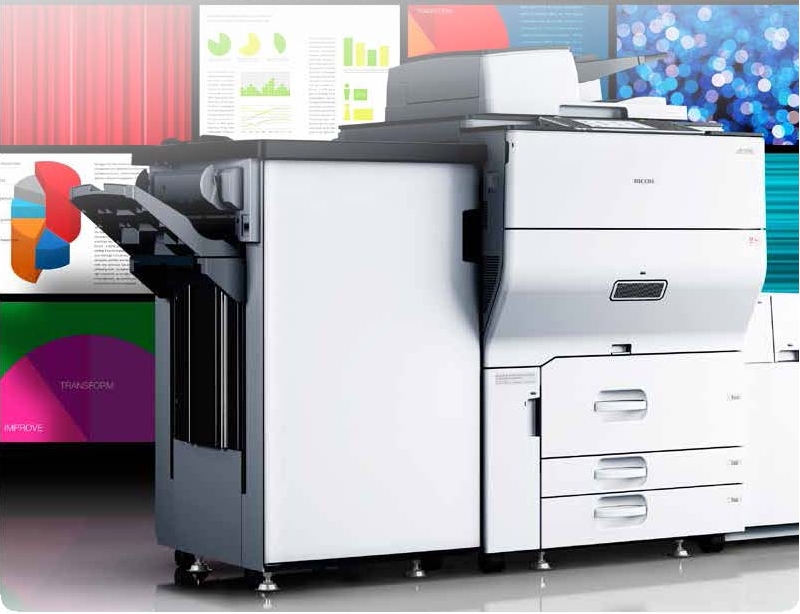

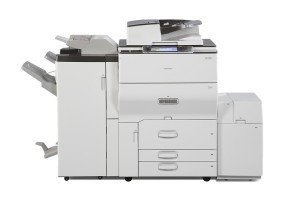

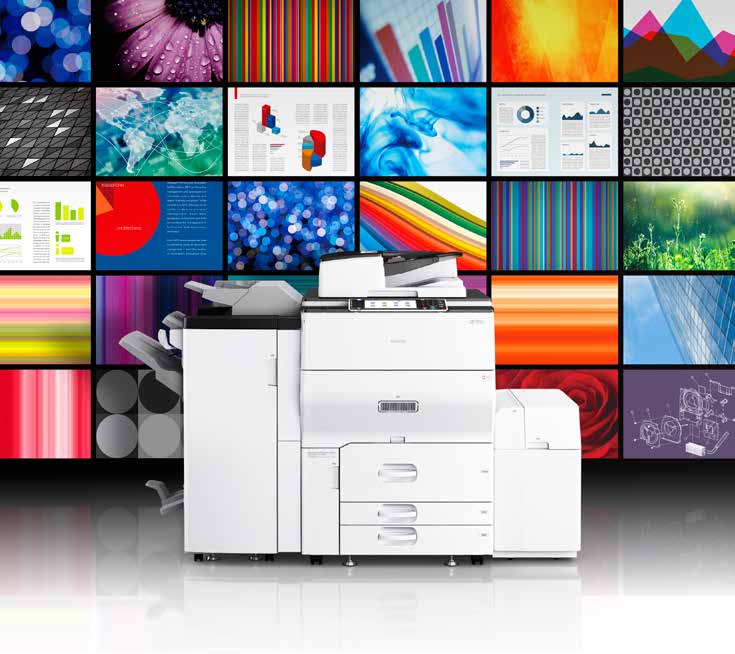

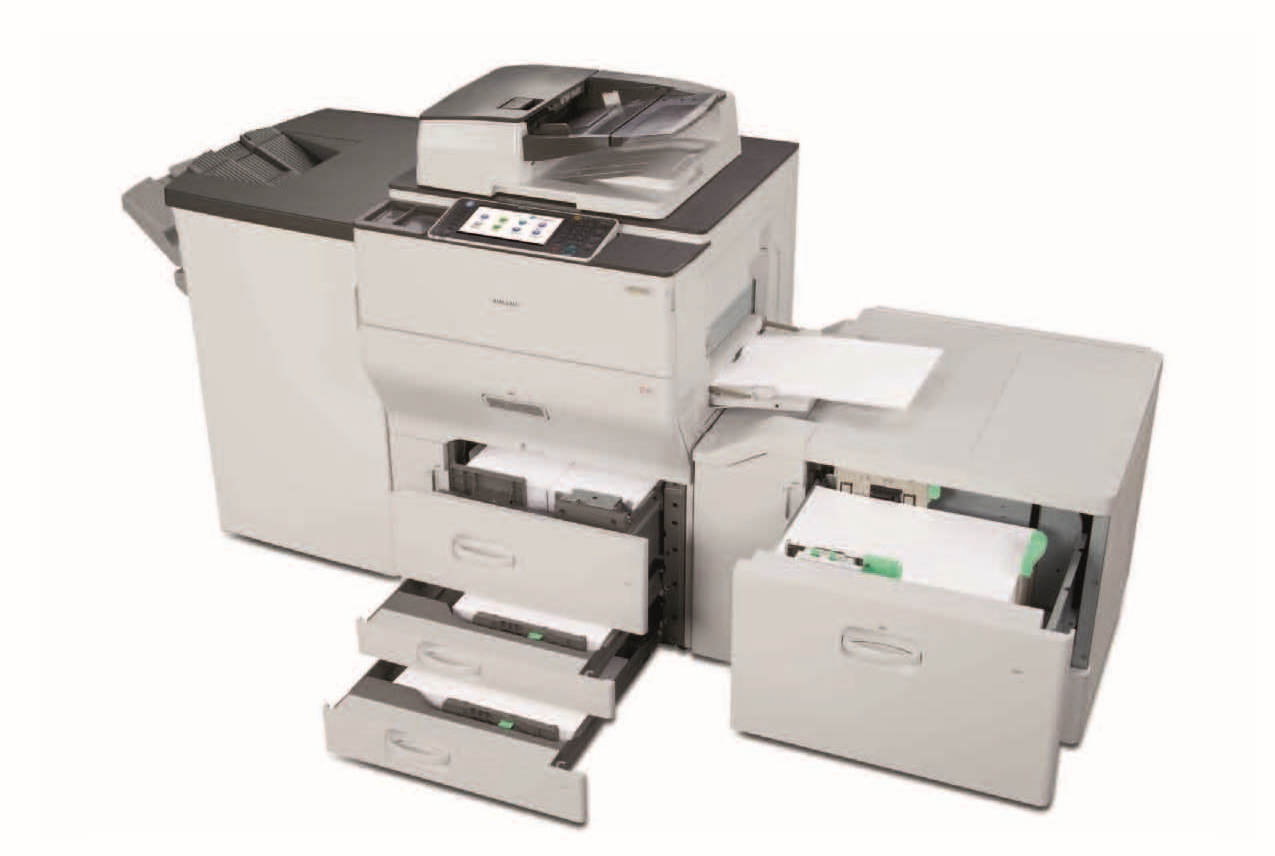

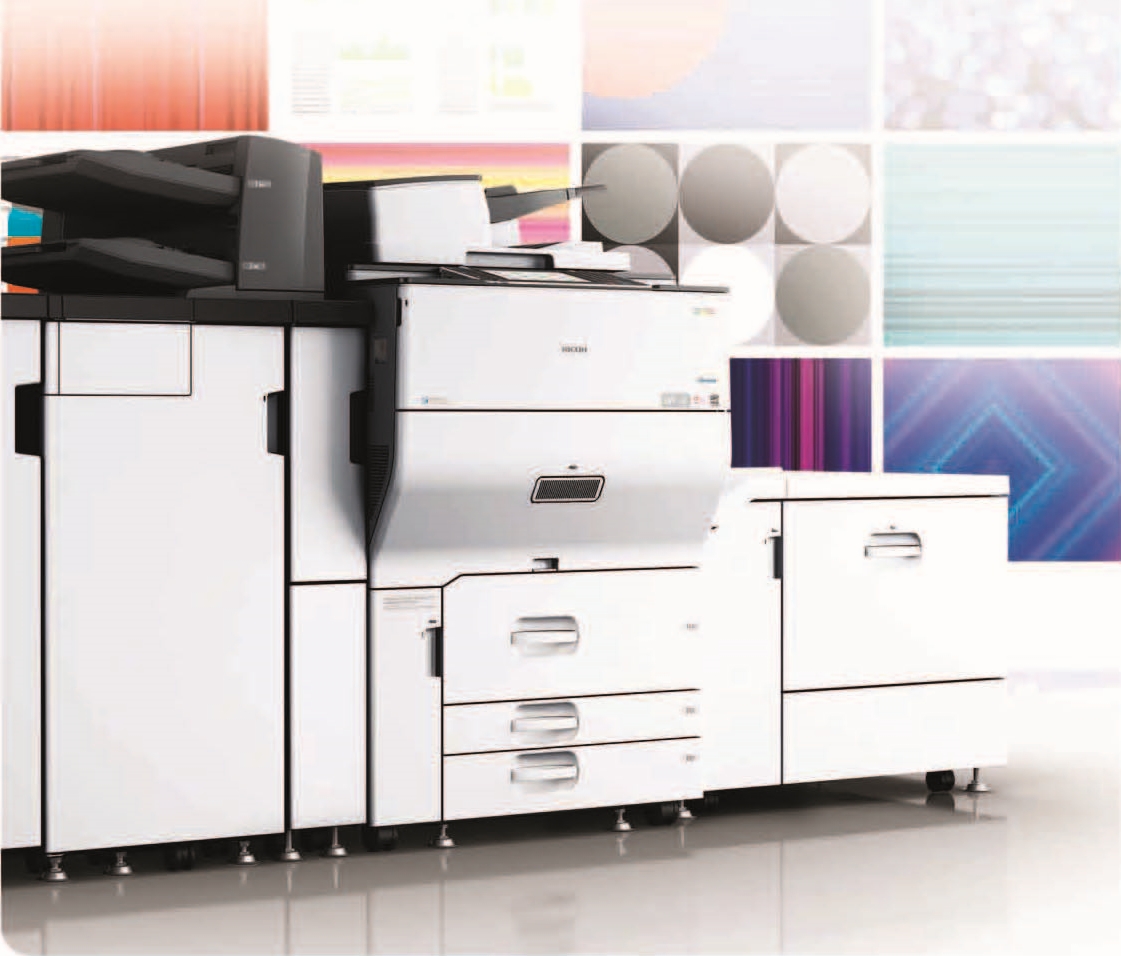

Ricoh MP C6502SP

Color Copier With Fast Print Speed

The Ricoh MP C6502SP color digital MFP uses cutting-edge laser technology to produce fast, exceptional color output. Designed to save power, paper and operating costs, this innovative MFP offers intuitive end-to-end control to improve workflow for everyday tasks. Take advantage of outstanding image quality, enhanced paper handling and robust finishing capabilities. Use it as your standalone, primary system—or as an integral part of a Ricoh Managed Document Services (MDS) strategy and improve productivity throughout your organization.

+ Functionalities

General Features

● Complete copying, printing, scanning, and document server functionality

● New VCSEL technology delivers impressive color with image resolution up to 1200 x 4800dpi

● Manage documents in sizes up to 13” x 19.2” (SRA3+)

● Simple to use operation to maximum productivity while minimizing operator training

● Comprehensive in-line finishing solutions that include stapling, booklet finishing, hole punching, and multiple folding capability

● Advanced security features, like Windows Authentication and User Code programming prevent unauthorized access as well as providing cost control.

● High-speed throughput of 65-ppm for both full-color and black & white

● Document Server Technology for online storage and print-on-demand capability

● Maximum paper capacity of up to 8,100-sheets

Copier Features

● Scan Once, Print Many for maximum productivity and reliability

● Walk-up users can access all attached finishing functions for copying

● Contain color usage with user codes to manage operation cost

● Standard 220-sheet SPDF for single pass color duplex scanning @ 220-spm (FC/BW)

● Key programming and access to copier functionality is all kept on two levels of navigation to simplify operation

● First-copy-out time of 7.2 seconds for full-color, and 5.3 seconds for black & white

Printer Features (Standard)

● Optional true Adobe® PostScript® 3

● 2.5GB RAM (std./max) and 640GB (320GB x 2) of Hard Disk Drive capacity provide ample resources to handle large color files

● Print from the network or from a single workstation with standard Ethernet and USB 2.0

● PCL5c and PCL6(XL) are standard and fully compatible with all major PC applications

Scanner Features

● Scan resolution up to 600 dpi when scanning to e-mail or folder

● Create TIFF/JPEG/PDF files from hard-copy and electronically store and/or share

● Scan-to-Email with LDAP support (no additional software or delivery server needed)

● Scan-to-Folder via SMB and FTP (no additional software or delivery server needed)

● Network TWAIN scanning up to 1,200 dpi (monochrome only)

● Scanning speed of 120-spm (simplex); 220-spm (duplex) Black & White or Full Color

+ Specifications

General Specification

Quantity Indicator 1 to 9,999
Dimensions (W x D x H) 29.5″ x 34.9″ x 48.3″ (including SPDF)
Weight 531 lbs (base system)
Warm-Up Time 50 seconds
First Copy Time Black & White: 5.3 seconds /Full-Color: 7.2 seconds
Copy Resolution 600 x 600 dpi
Original Type Sheet/Book/Object
Maximum Image Area Up to 11″ x 17″
Paper Capacity 1st Tray 1,250-sheets x 2 Capacity ; 550-sheets x 2nd & 3rd Trays
100-sheet Bypass Tray ; 3,700-sheet (std) capacity
8,100-sheet (max) capacity with options
Output Speed 65-ppm for both Black & White and Full Color
Paper Sizes/Weights 5.5″ x 8.5″ to 13″ x 19.2″ (14 lb. Bond – 142 lb. Index)
17 lb. Bond – 90 lb. Index (Duplex)
14 lb. Bond – 110 lb. Cover (Bypass)
Duplexing Standard
Zoom 25% – 400% in 1% increments
Page Memory (LTR) Document Server stores up to 3000 documents Maximum pages per document, 2000 pages Max. Stored Pages 15,000
Power Source 120V/20A/60Hz (dedicated)

Printer Controller Specifications (Standard)

CPU Intel Celeron Processor P4505 -1.86GHz
Page Description Languages PCL5c, PCL6, true Adobe® PS3 (optional), IPDS (optional)
PCL Fonts 45 Scalable fonts + 13 International Fonts
PostScript Fonts 136 Roman fonts (optional)
IPDS 108 Roman fonts (optional)
Print Resolution 1200 x 4800 dpi (max.)
Standard Interfaces Ethernet (1000Base-T/100Base-TX/10Base-T) USB2.0 Type A (USB2.0 Type B, SD Slot on Operation Panel
Optional Interfaces IEEE1284, Wireless LAN (IEEE802.11a/g)
Network Protocols TCP/IP (IP v4,IP v6), IPX/SPX
Operating Systems Windows: XP/Vista/7/Server 2003/ Server 2008/Server 2008R2; Netware; 6.5; Unix, Sun Solaris; HP-UX; SCO OpenServer; RedHat Linux; IBM AIX; MAC: OSX v10.2x or later; SAP R/3; NDPS Gateway; IBM iSeries AS400-using OS/400 Host Print Transform
Memory 640GB (320GB x 2)

Scanner Specifications (Standard)

Scanning Resolution Up to 600 dpi
Scan Area Maximum 11.7″ x 17″
Original Size Up to 11″ x 17″
File Types Single/Multi-Page PDF, Single/ Multi- Page TIFF, High Comp. PDF,PDF-A
Scan Mode Scan-to-Email Scan-to-Folder Scan-to-URL TWAIN Scanning
Scanning Speed B/W (Simplex): 120-spm; B/W (Duplex): 220-spm
Color (Simplex): 120-spm; Color (Duplex): 220-spm

Facsimile Specifications (Optional)

Circuit PSTN, PBX
Circuit ITU-T (CCITT), G3
Circuit (Standard mode: 200 x 100 dpi; 200 x 200 dpi ; (400 dpi with opt. SAF memory)
Compression Method MH, MR, MMR, JBIG
Modem Speed 33.6 Kbps – 2,400 bps (G3, standard with automatic shift down)
Transmission Speed G3: Approx 2 sec
Memory Backup 1 Hour
Quick/Speed Dials 2,000 numbers
Group Dials 100 groups (500 per group)
Energy Saver Mode Standard
