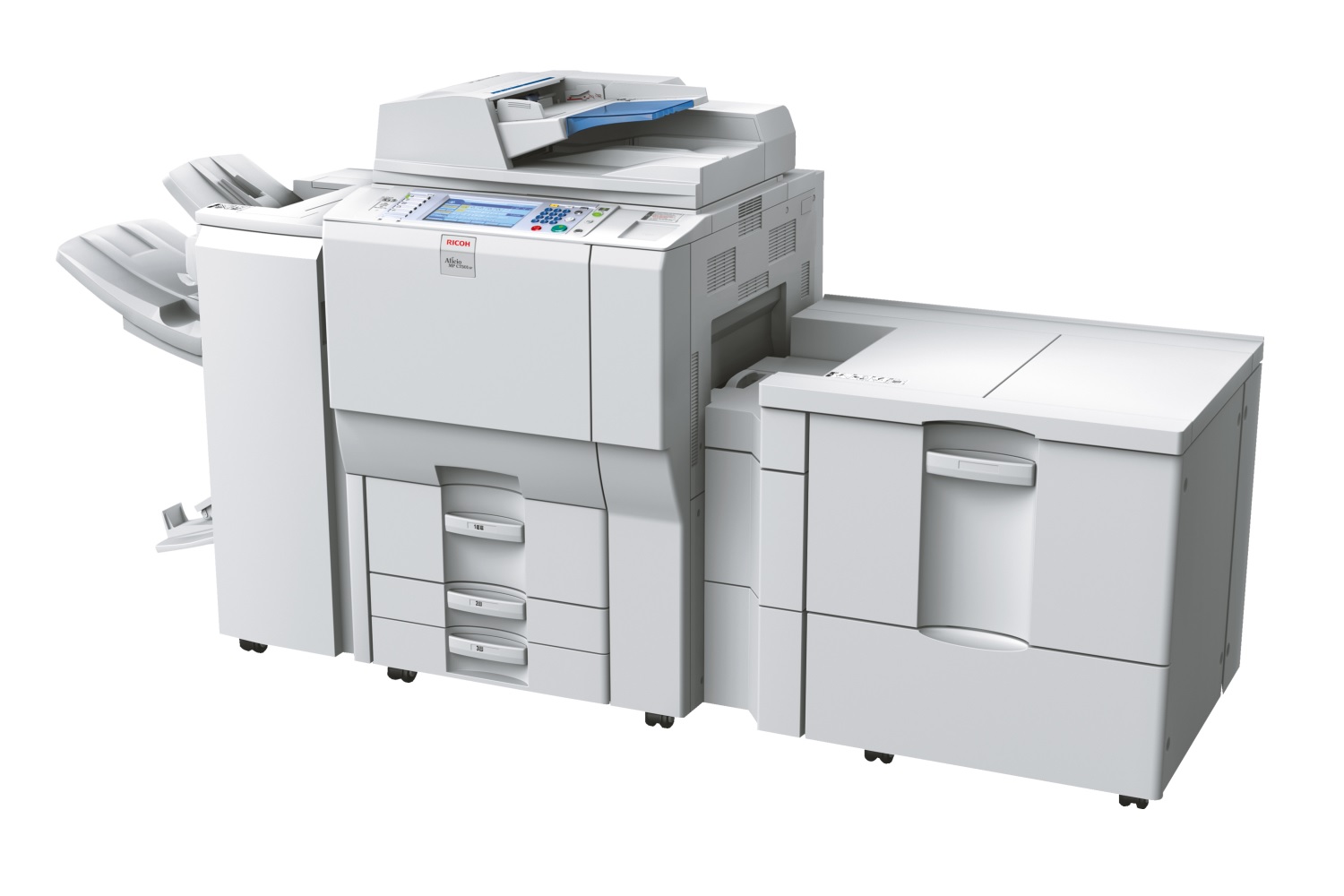

Overview
High productivity. High reliability. High quality. The Aficio™MP C7501SP offers them all. Truly multifunctional with printer, scanner and optional fax, these colour MFPs conveniently replace individual office devices. One-pass duplex scanning streamlines your workflow while fast print speeds help your business run smoother. Workflow efficiency is further increased and user-friendliness enhanced with Ricoh’s new App2Me software platform. Personalise your interaction with the MFP by using downloadable Widgets.
● Optimal productivity: up to 70 (colour) and 75 (B/W) pages per minute.
● Fast one-pass duplex scanning: 115 (colour) to 125 (B/W) images per minute.
● Security and flexibility: data protection and handling of various media types.
● High efficiency: applications for personalised settings.
● Continuous operation: 7,400-sheet maximum paper capacity.
General Features
● Complete copying, printing, scanning, and document serving functionality
● Simple to use operation to maximum productivity while minimizing operator training
● Documents ready for distribution through integrated finishing options including stapling, booklet finishing, and hole punching, six position fold and ringbinding
● Advanced security features, like Windows Authentication and User Code programming prevent unauthorized access as well as providing cost control.
● High-speed throughput of 70 ppm for full-color, and 75 ppm for black & white
● Document Server Technology for online storage and print-on-demand capability
● Create two-sided documents without impeding the system performance
Copier Features
● Scan Once, Print Many for maximum productivity and reliability
● Walk-up users can access all attached finishing functions for copying
● Contain color usage with user codes to manage operation cost
● Standard 100-sheet ARDF for single pass color duplex scanning
● Key programming and access to copier functionality is all kept on two levels of navigation to simplify operation
● First-copy-out time of 6.4 seconds for full-color, and 4.9 seconds for black & white
Printer Features (Standard)
● Optional Adobe® PostScript 3
● 1,536MB RAM (std./max) and 320GB (160GB x 2) of Hard Disk Drive capacity provide ample resources to handle large color files
● Print from the network or from a single workstation with standard Ethernet and USB 2.0
● PCL5c/6 are standard and fully compatible with all major PC applications
Scanner Features
● Scan resolution up to 600 dpi when scanning to e-mail or folder
● Create TIFF/JPEG/PDF files from hard-copy and electronically store and/or share
● Scan-to-Email with LDAP support (no additional software or delivery server needed)
● Scan-to-Folder via SMB and FTP (no additional software or delivery server needed)
● Network TWAIN scanning up to 1,200 dpi (monochrome only)
● Scanning speed of 125 ipm for Black & White; 115 ipm for Full Color
General Specification
Printing Process | 4-drum Electrostatic Transfer system with Internal Transfer Belt and Dry Two-component Development | |
Quantity Indicator | 1 to 9,999 | |
Dimensions (W x D x H) | 29.5″ x 33.5″ x 43.1″ (excluding ARDF) | |
Weight | < 656.9 lb. | |
Warm-Up Time | Less than 60 seconds | |
First Copy Time | Black & white: 4.9 seconds /Full-color: 6.4 seconds | |
Copy Resolution | 600 x 600 dpi | |
Original Type | Sheet/Book/Object | |
Maximum Image Area | Up to 11″ x 17″ | |
Standard Paper Capacity | 1st Tray 1,100 x 2 Capacity 550 sheets x 2nd & 3rd Trays, 100-Sheet Bypass Tray 7,400 sheet std. max capacity | |
Output Speed | Black & White 75 ppm/ Full Color 70 ppm | |
Paper Sizes/Weights | 5.5″ x 8.5″ to 12″ x 18″ 14 lb. Bond – 80 lb. Cover (std. Trays) 17 lb. Bond – 90 lb. Index (Duplex) 14 lb. Bond – 110 lb. Cover (Bypass) | |
Duplexing | Standard | |
Zoom | 25% – 400% in 1% increments | |
Page Memory (LTR) | Document Server stores up to 3000 documents Maximum pages per document, 2000 pages Max. Stored Pages 15,000 | |
Power Source | 208-240V/20A/60Hz | |
Printer Controller Specifications (Standard)
CPU | Intel Pentium – M 1.4GHz | |
Page Description Languages | RPCS, PCL5c, PCL6, Adobe PS3 (optional) | |
PCL Fonts | 35 Intellifonts, 10 TrueType Fonts, International Fonts: 13 Intellifonts | |
PostScript Fonts | 136 Adobe PostScript Type 1 fonts (optional) | |
Print Resolution | 600 x 1200 dpi | |
Optional Interfaces | IEEE1284, Wireless LAN (IEEE802.11a/g) Bluetooth, Ethernet 1000 Base-T | |
Network Protocol | TCP/IP, IPX/SPX, Apple Talk Apple Talk (Auto Switching) | |
Operating Systems | WIndows: 2000/XP/Vista/Server 2003-2008. Netware; 3.12, 3.2, 4.1, 4.11, 5.0, 5.1, 6, 6.5. Unix, Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX. MAC: OS 8.6 – 9.2x, OS X 10.1 or later | |
Memory | 320GB (160GB x 2) | |
Printer Controller Specifications (Option)
Standard Interfaces | Ethernet (100BaseTX10 Base-T), USB2.0 | |
Scanner Specifications (Option)
Scanning Resolution | Up to 600 dpi | |
Scan Area | Maximum 11.69″ x 17″ | |
Original Size | Up to 11″ x 17″ | |
File Types | Single/Multi-Page PDF, Single/ Multi- Page TIFF, High Comp. PDF | |
Scan-to modes | Scan-to-Email Scan-to-Folder Scan-to-URL TWAIN Scanning | |
Scanning Speed | B/W Simplex: 82 ipm; B/W Duplex: 130ipm Color Simplex: 60ipm; Color Duplex: 65ipm |
|
Fax Specifications (Option)
Circuit | PSTN, PBX | |
Compatibility | ITU-T (CCITT) G3, Additional G3 optional | |
Resolution | 200 x 100/200 dpi (400 dpi w/opt. SAF memory) | |
Compression Method | MH, MR, MMR, JBIG | |
Scanning Speed | 0.5 sec | |
Modem Speed | 33.6 Kbps – 2,400 bps | |
Transmission Speed | G3: Approx 2 sec. | |
Memory Backup | 1 Hour | |
Quick/Speed Dials | 2,000 numbers | |
Group Dials | 100 groups (500 per group) | |
Energy Saver Mode | Standard |
